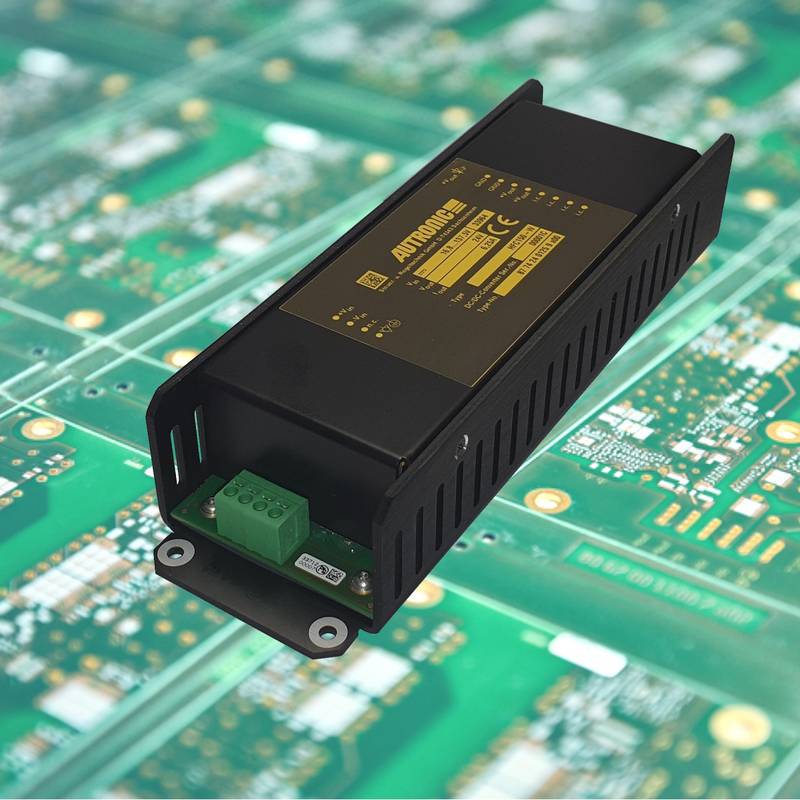

HFC150-W/G – Compact 150 W Power Supply for Modern Railway Systems
With the HFC150-W/G, FORTEC Power offers a high-performance DC/DC converter for demanding railway applications. This updated generation stands out thanks to integrated EMC compliance, comprehensive protection features, and a wide input voltage range of 24 to 110 VDC.
Design-in effort is significantly reduced as the unit already complies with railway standards EN 50155, EN 50121-3-2, and EN 45545-2 HL3. Features such as integrated 10 ms hold-up time, efficiency of up to 93%, and active protection functions ensure maximum reliability in railway operations.
The HFC150-W/G delivers 150 W of output power without derating and is designed for temperature classes OT4, ST1, and ST2. It is available with output voltages of ±15 V, ±24 V, 24 V, and 48 V.
Your Benefits
- 150 W output power in a compact design
- Reduced design-in effort due to integrated EMC compliance
- Complies with EN 50155, EN 50121-3-2, and EN 45545-2 HL3
- Input voltage range 24–110 VDC (±40%)
- Efficiency up to 93%
- Active protection functions for maximum operational reliability
- Full power without derating
- Proven FORTEC Power quality
